Date and Time Programming
|
|
There are a couple of different ways access the time change feature, depending on the type of system you have. A programming template is provided below if you need it. Just cut-out the middle areas as well as around the outside of the template. Once cut, place the template over the top 2 rows of buttons on your 7310 or 7324 telephone (typically lines 1 and 2 on your telephone), or the 8 rows on your 7208 telephone. After you enter programming mode, all methods are pretty much the same. For printable version of Date and Time Programming Instructions Click Here ****** IMPORTANT NOTES ****** *** The M8x24, Compact ICS and the Modular ICS KSU must be programmed with an M7310, T7316 or a M7324 telephone. (A M7208/T7208 will not program these systems.) Note CICS & MICS 2007 DST adjustment: Set Daylight Savings Time = Y in "System Programming" |
|
Access type 1: Press * * TIME (8463) or Access type 2: Press * * ADMIN (23646) Screen displays Password: then enter 23646 or 266344 Display shows 1.Sys speed dial Press Next Display shows 2. Names Press Next Display shows 3. Time and date Press Show Display shows Time 16:24 On the Softkey under the display it says CHANGE If you wish to change the time, press CHANGE, if not press NEXT
Follow the same procedure for changing the date! Programming template for M7208

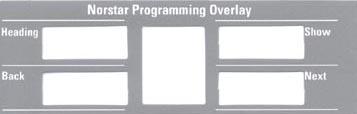

Programming template for M7310

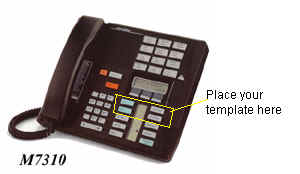

Print this page, cut out the middle areas with a utility knife and then cut around the outside box.
|
